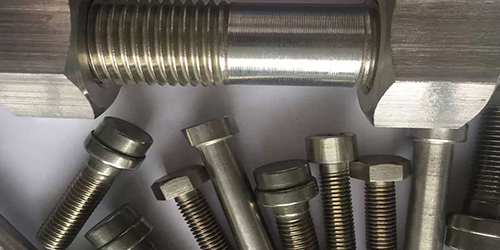

Duplex SS Fasteners are produced from an alloy that has a high content of chromium and low to moderate content of nickel. The high chromium content in the Duplex Stainless Steel Fasteners gives them high tensile strength along with increased hardness and toughness. Therefore Duplex Stainless Steel Fasteners are less likely to get damaged or deformed and get dented.Another reason for the Duplex Stainless Fasteners having good mechanical properties can be attributed to the mixed, yet balanced austenite and ferrite microstructure present in the alloy.
In fact the improved strength of the Duplex Steel Fasteners is inherited from the austenitic portion of the structure while its toughness has been inherited from the ferritic portion of the microstructure. Since the mechanical strength of the alloy is very high, Duplex Fasteners Manufacturer can reduce the weight of the designed product by thinning cross section of the end product, there by proving to be a cost saving alternative to other grades of stainless steel. The reduction in the weight of the product does not mean that the other qualities are compromised.
Even on reduction of its weight, the Duplex Stainless Steel Fasteners have an excellent performance, that can rival the 300 grade stainless steel series.The alloys of Duplex Steel Fixings offers excellent resistance to chlorine related stress cracking. Also known as the standard duplex grade stainless steel, these 2205 Duplex Bolts are amongst one of the most widely used grades of stainless steel. While they are known to represent properties in the mid-range, Duplex 2205 Fasteners have an increased resistance to corrosion resistance as compared to standard austenitic grades of stainless steel.
Specifications of Duplex Steel 2205 Fasteners | ASTM A479 & ASME SA479 |
Standard of Duplex Steel 2205 Fasteners | DIN, ASTM, BS and all International Standards |
Length of Duplex Steel 2205 Fasteners | 3 mm to 200 mm |
Duplex Steel 2205 Nuts Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
Duplex Bolts / Screw Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
Duplex Steel 2205 Machine Screws Size | M1.6 - M12 |
Duplex Steel 2205 Washers Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
Duplex Steel Grades | Duplex Steel UNS S32205 |
Duplex Steel 2205 Fasteners Type | Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw, Pan Head Screw, Socket Head Cap Screw, Wing Screw, T-Head Bolts, Foundation Bolts,Screw, Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts,Eye Bolt,Structural Bolts, Bolts, Nuts, Sockets, Screws, Allen Cap screw |
NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNEASTM A479 | ACROASTM A479 THE FLATS | ACROASTM A479 CORNERS | ||||
---|---|---|---|---|---|---|---|---|
D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Nut Size (mm) |
Diameter (mm) |
Height (mm) |
||
---|---|---|---|---|
Hex Nut | Jam Nut | Nylock Nut | ||
2 | 4 | 1.6 | 1.2 | - |
2.5 | 5 | 2 | 1.6 | - |
3 | 5.5 | 2.4 | 1.8 | 4 |
4 | 7 | 3.2 | 2.2 | 5 |
5 | 8 | 4 | 2.7 | 5 |
6 | 10 | 5 | 3.2 | 6 |
7 | 11 | 5.5 | 3.5 | - |
8 | 13 | 6.5 | 4 | 8 |
10 | 17 | 8 | 5 | 10 |
12 | 19 | 10 | 6 | 12 |
14 | 22 | 11 | 7 | 14 |
16 | 24 | 13 | 8 | 16 |
18 | 27 | 15 | 9 | 18.5 |
20 | 30 | 16 | 10 | 20 |
* This is the diameter across the flats. It is also the size of wrench to use. |
Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
Width Across Flats |
Width Across Corners |
Thickness | |||||||
Basic | Max | Min | Max | Min | Basic | Max | Min | ||
1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Bolt Size | USS | SAE | ||||
OD (in.) | ID (in.) | Thickness | OD (in.) | ID (in.) | Thickness | |
1/8 (#6) | - | - | - | 0.375 | 0.156 | .036/.065 |
5/32 (#8) | - | - | - | 0.438 | 0.188 | .036/.065 |
3/16 (#10) | 0.560 | 0.250 | .036/.065 | 0.500 | 0.220 | .036/.065 |
7/32 (#12) | - | - | - | 0.562 | 0.250 | .051/.080 |
1/4 (#14) | 0.734 | 0.312 | .051/.080 | 0.625 | 0.281 | .051/.080 |
5/16 | 0.875 | 0.375 | .064/.104 | 0.688 | 0.344 | .051/.080 |
3/8 | 1.000 | 0.438 | .064/.104 | 0.812 | 0.406 | .051/.080 |
7/16 | 1.250 | 0.500 | .064/.104 | 0.922 | 0.469 | .051/.080 |
1/2 | 1.375 | 0.562 | .086/.132 | 1.062 | 0.531 | .074/.121 |
9/16 | 1.469 | 0.625 | .086/.132 | 1.156 | 0.594 | .074/.121 |
5/8 | 1.750 | 0.688 | .108/.160 | 1.312 | 0.656 | .074/.121 |
3/4 | 2.000 | 0.812 | .122/.177 | 1.469 | 0.812 | .108/.160 |
7/8 | 2.250 | 0.938 | .136/.192 | 1.750 | 0.938 | .108/.160 |
1 | 2.500 | 1.062 | .136/.192 | 2.000 | 1.062 | .108/.160 |
1 1/8 | 2.750 | 1.250 | .136/.192 | 2.250 | 1.250 | .108/.160 |
1 1/4 | 3.000 | 1.375 | .136/.192 | 2.500 | 1.375 | .136/.192 |
1 3/8 | 3.250 | 1.500 | .153/.213 | 2.750 | 1.500 | .136/.213 |
1 1/2 | 3.500 | 1.625 | .153/.213 | 3.000 | 1.625 | .153/.213 |
1 5/8 | 3.750 | 1.750 | .153/.213 | - | - | - |
1 3/4 | 4.000 | 1.875 | .153/.213 | - | - | - |
1 7/8 | 4.250 | 2.000 | .153/.213 | - | - | - |
2 | 4.500 | 2.125 | .153/.213 | - | - | - |
2 1/4 | 4.750 | 2.375 | .320/.248 | - | - | - |
2 1/2 | 5.000 | 2.625 | .210/.280 | - | - | - |
2 3/4 | 5.250 | 2.875 | .228/.410S | - | - | - |
3 | 5.500 | 3.125 | .249/.327 | - | - | - |
Nominal | Thread. | Hex Socket Size | Body diameter and Head height | Head Dia | Soc. length | ||
Size | Pitch | Max | Min | Max | Min | ||
J | D /H | A | K | ||||
M3 | 0.5 | 2.50 | 3.00 | 2.86 | 5.50 | 5.20 | 1.3 |
M4 | 0.70 | 3.00 | 4.00 | 3.82 | 7.00 | 6.64 | 2.00 |
M5 | 0.8 | 4.00 | 5.00 | 4.82 | 8.50 | 8.14 | 2.70 |
M6 | 1.0 | 5.00 | 6.00 | 5.82 | 10.00 | 9.64 | 3.30 |
M8 | 1.25 | 6.00 | 8.00 | 7.78 | 13.00 | 12.57 | 4.3 |
M10 | 1.5 | 8.00 | 10.00 | 9.78 | 16.00 | 15.57 | 5.50 |
M12 | 1.75 | 10.00 | 12.00 | 11.73 | 18.00 | 17.57 | 6.60 |
M16 | 2.0 | 14.00 | 16.00 | 15.73 | 24.00 | 23.48 | 8.80 |
M20 | 2.5 | 17.00 | 20.00 | 19.67 | 30.00 | 29.48 | 10.70 |
M24 | 3.0 | 19.00 | 24.00 | 23.67 | 36.00 | 35.38 | 12.90 |
Cr | Ni | Mo | C | N | Mn | Si | P | S | Fe |
---|---|---|---|---|---|---|---|---|---|
22.0-23.0 | 4.50-6.50 | 3.00-3.50 | .030 Max | 0.14-0.20 | 2.00 Max | 1.00 Max | .030 Max | .020 Max | Balance |
ASTM A 240 | Typical | |
---|---|---|
Yield Strength 0.2%, ksi | 65 min. | 74 |
Tensile Strength, ksi | 90 min. | 105 |
Elongation, % | 25 min. | 30 |
Hardness RC | 32 max. | 19 |
Temperature °F | 68 | 212 | 392 | 572 | |
---|---|---|---|---|---|
Density | lb/in3 | 0.278 | — | — | — |
Modulus of Elasticity | psi x 106 | 27.6 | 26.1 | 25.4 | 24.9 |
Linear Expansion (68°F-T) | 10-6/°F | — | 7.5 | 7.8 | 8.1 |
Thermal Conductivity | Btu/h ft°F | 8.7 | 9.2 | 9.8 | 10.4 |
Heat Capacity | Btu/lb ft°F | 0.112 | 0.119 | 0.127 | 0.134 |
Electrical Resistivity | Ωin x 10-6 | 33.5 | 35.4 | 37.4 | 39.4 |
