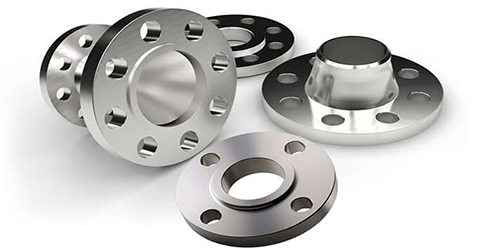

Super Duplex Zeron 100
ASTM A182 Duplex Steel Flanges, Zeron 100 Duplex Slip On Flanges Dealer, Duplex Steel UNS S32760 Industrial Flanges Stockists, UNS S32760 Orifice Flange Suppliers, DIN 1.4362 Pipe Flange, Distributors of ASME SA182 Duplex Steel UNS S32760 Blind Flanges in Mumbai, India.
Duplex S32760 Stainless Steel Weld Neck Flanges Manufacturer, ASME 16.5 Duplex Steel UNS S32760 Slip On Raised Face (SORF) Flanges, Duplex UNS S32760 Ring Type Joint Flanges (RTJ) Wholesaler, Class 300# Duplex Steel UNS S32760 Lap Joint Flanges, UNS S32760 Ferritic/Austenitic Stainless Steel Socket weld Flanges Exporters.
Ashtavinayak Alloys are Manufacturer & Fabricator, Importer, Stockholder, Super Duplex Zeron 100 Flanges ASTM A182 UNS S32760, Premier Suppliers of bulk Super Duplex Zeron 100 Flanges ASTM A182 UNS S32760. Fast delivery guaranteed for every size Super Duplex Zeron 100 Flanges ASTM A182 UNS S32760. ASTM A182 UNS S32760 Super Duplex Zeron 100 Flanges, Largest Range of Super Duplex Zeron 100 Flanges UNS S32760 / Zeron 100, Super Duplex Flanges Suppliers in India.
Call Us : +91 9969678686
Check Super Duplex Zeron 100 Flanges Price in India, ASTM A182 Type Zeron 100 Flanges wholesaler in Mumbai. mirror finish Saf Zeron 100 Flanges suppliers in India. Thick Zeron 100 SS Flanges stockholder, Zeron 100 SS Flanges manufacturers.
Duplex Steel UNS S32760 Flat Face Flanges, SAF Zeron 100 Spectacle Blind Flanges Suppliers, Werkstoff No 1.4501 Duplex Socket Weld Raised Face Flanges (SWRF) Traders, EN 1092-1 Super Duplex Zeron 100 S32760 Reducing Flanges, Zeron 100 Duplex Square Flanges, BS 4504 Duplex UNS S32760 Tongue & Groove Flanges, Duplex UNS S32760 Weld Neck Raised Face Flanges (WNRF) Flanges Exporters.
We, Ashtavinayak Alloys have reinvented and refined an original quality control and analysis system that we follow to the nine to offer you products that have an unsurpassed quality. We've grown grey head into this business, being a proficient supplier of superior products. we are manufacturers of ASTM A182 Duplex UNS S32760 Flanges show enhanced pitting corrosion resistance in saline environments, brackish waters, bleaching operations, and selected food processing applications. Offshore marine engineering plants need compenents that meet their rugged demands, components that have mammoth strenght but are light weight. We are suppliers of WNR 1.4362 Super Duplex Steel Weld Neck Flanges with matching stub-ends that withstand alkalis under higher temperatures. Super Duplex UNS S32760 Reducing Flanges have a strengthened microstructure, a result of added Nitrogen, allowing fabrication of thin and low-weight flanges that are easy on the pocket.
As exporters, we are indefatigably trying to provide our clients with products that give a host of Super Duplex Slip on Flanges products that are easy to transport and cost less. Also We offer wide range of Super Duplex Steel ASTM A182 Flanges such as Super Duplex Zeron 100 Slip On Flanges, Super Duplex Steel S32760 Weld Neck Flanges, Super Duplex F51 Socket Weld Flanges, Gr. F52 Super Duplex Blind Flanges, Super Duplex Steel F56 Orifice Flanges, Super Duplex Steel S32760 Spectacle Blind Flanges, Super Duplex Steel F60 Screwed / Threaded Flanges, Super Duplex Steel F61 Reducing Flanges, Super Duplex Zeron 100 Ring Type Joint Flanges (RTJ) etc.
Types of Packaging:
- - Bundles (hexagonal)
- - Wooden Boxes
- - Crates (steel/wooden)
- - Special crates for U-Bend tubes with each radius separated
- - Packaging for SS UNS S32760 Stainless Steel Flanges as per customer's requirements
Special Features:
- - Each bundle covered with plastic for protection against extreme weather.
- - End of UNS S32760 Stainless Steel Flange protected by plastic Strip.
- - Bundles strapped with plastic strips.
- - Each radius of U-Bend tube separated by a separator.
- - Packaging list (laminated) placed with box/crate.
Application of Super Duplex Zeron 100 UNS S32760 Flanges:
- - Pulp and paper manufacturing
- - Food processing
- - Oil & Gas Exploration
- - Piping and Heat Exchangers.
Specification of Duplex Steel Zeron 100 Flanges :
| Standards | ASTM A182 / ASME SA182 |
|---|---|
| Grades | S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Dimension | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Size | 1/8" NB TO 24" NB |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Dimensions of Super Duplex Zeron 100 Flanges :
| Nominal Size |
Outside Diameter (OD) |
Min. Thickness (T) |
RF Dia. (R) |
No. of Bolt Holes | Diameter of Holes |
Bolt Circle (BC) |
SO Bore ID (SB) |
WN Bore ID (WB) |
Dia. Hub Base (HB) |
Dia. of Hub Top (HT) |
SO LTH (SL) |
WN LTH (WL) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1⁄2 | 3.50 | 0.38 | 1.38 | 4 | 0.62 | 2.38 | 0.88 | 0.62 | 1.19 | 0.84 | 0.56 | 1.81 |
| 3⁄4 | 3.88 | 0.44 | 1.69 | 4 | 0.62 | 2.75 | 1.09 | 0.82 | 1.50 | 1.05 | 0.56 | 2.00 |
| 1 | 4.25 | 0.50 | 2.00 | 4 | 0.62 | 3.12 | 1.36 | 1.05 | 1.94 | 1.32 | 0.62 | 2.12 |
| 11⁄4 | 4.62 | 0.56 | 2.50 | 4 | 0.62 | 3.50 | 1.70 | 1.38 | 2.31 | 1.66 | 0.75 | 2.19 |
| 11⁄2 | 5.00 | 0.62 | 2.88 | 4 | 0.62 | 3.88 | 1.95 | 1.61 | 2.56 | 1.90 | 0.81 | 2.38 |
| 2 | 6.00 | 0.69 | 3.62 | 4 | 0.75 | 4.75 | 2.44 | 2.07 | 3.06 | 2.38 | 0.94 | 2.44 |
| 21⁄2 | 7.00 | 0.81 | 4.12 | 4 | 0.75 | 5.50 | 2.94 | 2.47 | 3.56 | 2.88 | 1.06 | 2.69 |
| 3 | 7.50 | 0.88 | 5.00 | 4 | 0.75 | 6.00 | 3.57 | 3.07 | 4.25 | 3.50 | 1.12 | 2.69 |
| 31⁄2 | 8.50 | 0.88 | 5.50 | 8 | 0.75 | 7.00 | 4.07 | 3.55 | 4.81 | 4.00 | 1.19 | 2.75 |
| 4 | 9.00 | 0.88 | 6.19 | 8 | 0.75 | 7.50 | 4.57 | 4.03 | 5.31 | 4.50 | 1.25 | 2.94 |
| 5 | 10.00 | 0.88 | 7.31 | 8 | 0.88 | 8.50 | 5.66 | 5.05 | 6.44 | 5.56 | 1.38 | 3.44 |
| 6 | 11.00 | 0.94 | 8.50 | 8 | 0.88 | 9.50 | 6.72 | 6.07 | 7.56 | 6.63 | 1.50 | 3.44 |
| 8 | 13.50 | 1.06 | 10.62 | 8 | 0.88 | 11.75 | 8.72 | 7.98 | 9.69 | 8.63 | 1.69 | 3.94 |
| 10 | 16.00 | 1.12 | 12.75 | 12 | 1.00 | 14.25 | 10.88 | 10.02 | 12.00 | 10.75 | 1.88 | 3.94 |
| 12 | 19.00 | 1.19 | 15.00 | 12 | 1.00 | 17.00 | 12.88 | 12.00 | 14.38 | 12.75 | 2.12 | 4.44 |
| 14 | 21.00 | 1.31 | 16.25 | 12 | 1.12 | 18.75 | 14.14 | 13.25 | 15.75 | 14.00 | 2.19 | 4.94 |
| 16 | 23.50 | 1.38 | 18.50 | 16 | 1.12 | 21.25 | 16.16 | 15.25 | 18.00 | 16.00 | 2.44 | 4.94 |
| 18 | 25.00 | 1.50 | 21.00 | 16 | 1.25 | 22.75 | 18.18 | 17.25 | 19.88 | 18.00 | 2.62 | 5.44 |
| 20 | 27.50 | 1.62 | 23.00 | 20 | 1.25 | 25.00 | 20.20 | 19.25 | 22.00 | 20.00 | 2.81 | 5.62 |
| 22 | 29.50 | 1.75 | 25.25 | 20 | 1.38 | 27.25 | 22.22 | 21.25 | 24.25 | 22.00 | 3.07 | 5.82 |
| 24 | 32.00 | 1.81 | 27.25 | 20 | 1.38 | 29.50 | 24.25 | 23.25 | 26.12 | 24.00 | 3.19 | 5.94 |
Chemical Composition of Duplex Steel Zeron 100 Flanges :
| C | Mn | Si | P | S | Cr | Cu | Ni | N |
| 0.03 | 2.5 | 1.0 | 0.04 | 0.03 | 21.5 -24.5 | 0.05-2.0 | 3.0-3.5 | 0.05-2.0 |
Mechanical Composition of Duplex Steel Zeron 100 Flanges :
| Tensile Strength, ksi | .2% Yield Strength, ksi | % Elongation in 50mm | Hardness Max. |
|---|---|---|---|
| 109 | 80 | 25 | 28 HRC |
Physical Properties of Duplex Steel Zeron 100 Flanges :
| Units | Temperature in °C | |
| Density | 7.84 g/cm³ | Room |
| Specific Heat | 0.115 Kcal/kg.C | 20° |
| Melting Range | 1377 - 1455 °C | - |
| Modulus of Elasticity | 199 KN/mm² | 22° |
| Electrical Resistivity | 85.1 µΩ.cm | Room |
| Coefficient of Expansion | 11.1 µm/m °C | 20 - 100° |
| Thermal Conductivity | 14.2 W/m -°K | 20° |
Weight Chart of Super Duplex Zeron 100 Flanges :
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 | PN14 | 95 | 67 | 4 | M12 | 14 |
| AS 2129 | Table C | 95 | 67 | 4 | 13 | 14 |
| Table D | 95 | 67 | 4 | 13 | 14 | |
| Table E | 95 | 67 | 4 | 13 | 14 | |
| Table F | 95 | 67 | 4 | 13 | 14 | |
| Table H | 114 | 83 | 4 | 16 | 17 | |
| Table J | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 | ANSI 150 | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) | PN6 | 80 | 55 | 4 | M10 | 11 |
| PN10 | 95 | 65 | 4 | M12 | 14 | |
| PN16 | 95 | 65 | 4 | M12 | 14 | |
| PN20 | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 | 95 | 65 | 4 | M12 | 14 | |
| PN40 | 95 | 65 | 4 | M12 | 14 |
Dimensions Tolerance of Duplex SS Flanges :
| Outside Diameter ≤ 24 = 1.6 mm | > 24 = ± 3.2 mm |
Inside Diameter not applicable |
| Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm |
Outside Diameter of Hub ≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm |
| Diameter of Counterbore not applicable |
Drilling Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing ≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max. |
| Thickness ≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0 |
Length thru Hub ≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm |
Super Duplex Zeron 100 Flange Pressure Rating :
| Temp. ℃ | Pressure-temperature rating for ASME B16.47 by class, bar | |||||
| 75 | 150 | 300 | 400 | 600 | 900 | |
| -29 to 38 | 10.0 | 20.0 | 51.7 | 68.9 | 103.4 | 155.1 |
| 50 | 9.8 | 19.5 | 51.7 | 68.9 | 103.4 | 155.1 |
| 100 | 8.8 | 17.7 | 50.7 | 67.5 | 101.3 | 152.0 |
| 150 | 7.9 | 15.8 | 45.9 | 61.2 | 91.9 | 137.8 |
| 200 | 6.9 | 13.8 | 42.7 | 56.9 | 85.3 | 128.0 |
| 250 | 6.0 | 12.1 | 40.5 | 53.9 | 80.9 | 121.4 |
| 300 | 5.1 | 10.2 | 38.9 | 51.8 | 77.7 | 116.6 |
Possible Alternative Grades in Place of Zeron 100 SS Duplex Flange :
|
904L |
Better formability is needed, with similar corrosion resistance and lower strength. |
|
UR52N+ |
High resistance to corrosion is required, e.g. resistance to higher temperature seawater. |
|
6%Mo |
Higher corrosion resistance is required, but with lower strength and better formability. |
|
316L |
The high corrosion resistance and strength of Zeron 100 are not needed. 316L is lower cost. |
Types of Duplex Steel Zeron 100 Flanges :
| Super Duplex Zeron 100 Flange | Super Duplex Zeron 100 Blind Flange |
| Super Duplex Steel Zeron 100 Slip on Flange | S32760 Duplex Steel Threaded Flange |
| ASTM A240 Duplex Steel Reducing Flange | Duplex Steel 1.4362 Socket Weld Flange |
| Duplex S32760 Weld Neck Flanges | Duplex SS Zeron 100 Lap Joint Flanges |
| Duplex Steel 1.4362 Long Weld Neck Flanges | Duplex Steel Zeron 100 Spectacle Blind Flanges |
| ASTM A240 Duplex Steel Spades & Ring Spacers | Super Duplex Zeron 100 Nipoflange |
| S32760 Duplex Steel 5D Weldoflange | Duplex S32760 Flange Outlet |
| Super Duplex Zeron 100 Forged Flanges | Duplex Steel 1.4362 Plate Flange |
| S32760 Duplex Steel Ring Type Joint Flanges | ASTM A240 Duplex Steel Raised Face Flanges |
| Duplex SS Zeron 100 Tongue and Groove Flanges | Duplex Steel Zeron 100 Male and Female Flange |
| Duplex S32760 Reducing Flanges | Super Duplex Zeron 100 ASME B16.5 Flanges |
| Super Duplex Zeron 100 Flanges | Duplex Steel 1.4362 BS 10 Flanges |
| ASTM A240 Duplex Steel BS 4504 Flanges | S32760 Duplex Steel EN 1092-1 Flanges |
| Duplex S32760 SORF Flange | Duplex Steel Zeron 100 BLRF Flange |
| Super Duplex Zeron 100 WNRF Flange | Super Duplex Zeron 100 Series a Lap Joint Ring Flange |
| Duplex Steel 1.4362 PN16 blind flange | ASTM A240 Duplex Steel Forged Socket Weld Pipe Flange |
| Duplex Steel Zeron 100 Class 300 slip on flange | Duplex S32760 Slip On Weld Flange |
| S32760 Duplex Steel Forged steel slip on flanges | Super Duplex Zeron 100 Race face slip on flange |
| Super Duplex Zeron 100 SWRF Flange | Duplex SS Zeron 100 Forged blind flange |
| Duplex Steel Zeron 100 groove weld neck flange | Duplex Steel 1.4362 Socket Weld Hub Flange |
| ASTM A240 Duplex Steel threaded lap joint flange | Super Duplex Zeron 100 Slip On Integral flange |
| Duplex SS Zeron 100 Forged integral puddle flange | S32760 Duplex Steel table e long weld neck |
| Duplex Steel Zeron 100 Class 150 LBS Flange | Duplex SS Zeron 100 PN10 Forged Flanges |
Exporter of Duplex Steel Zeron 100 (UNS S32760) :
Ashtavinayak Alloys supply Super Duplex Steel Zeron 100 (UNS S32760 / Wr.No. 1.4501) Flanges at Andhra Pradesh, Hyderabad, Chennai, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Haryana, Himachal Pradesh, baddi, Gujarat, Srinagar, Jharkhand, Karnataka, Kerala, Thiruvanthapuram, Madhya Pradesh, Maharashtra, pune, Manipur, Meghalaya, Mizoram, Nagaland, Orissa, Punjab, Rajasthan, Sikkim, Uttar Pradesh, Uttaranchal, West Bengal.
Ashtavinayak Alloys exports Super Duplex Steel Zeron 100 (UNS S32760 / Wr.No. 1.4501) Flanges to Countries like UAE, Oman, Quatar, Kuwait, Egypt, South Africa, Uganda, Tanzania, Sudan, Saudi Arabia, Cameroon, Gabon, Seychelles, Ethiopia, Tunisia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Turkey, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States Of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, Libya, Equatorial Guinea, The Republic Of Congo, europe, Africa, Asia, North America, South America, Middle East, Far East.etc.
For further enquiries related to Super Duplex Steel Zeron 100 (UNS S32760 / Wr.No. 1.4501) Flanges kindly get back to us on :- salesashtavinayakalloys@gmail.com in or whatsapp on +91 9969678686
